To Scope or Not
-
p.1 - Play the video from this slide. p.1
To Scope or Not
Amy Allen, DVM, DACVIM
Mobile Endoscopy
415-272-8982p.1 -
p.2 - Play the video from this slide. p.2

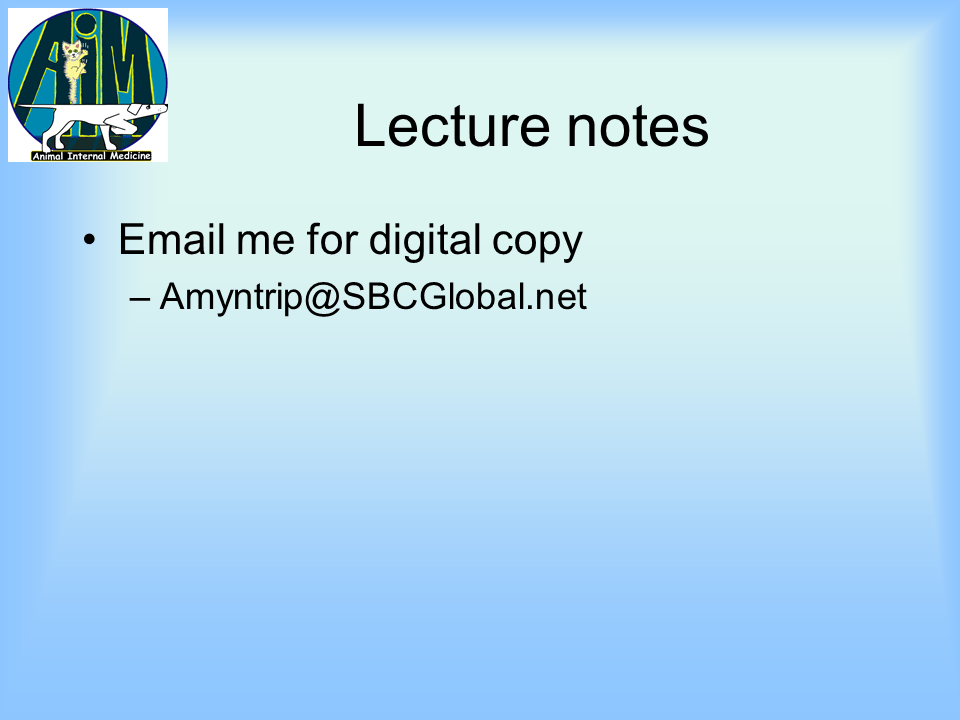

Lecture notes
• Email me for digital copy
– Amyntrip@SBCGlobal.netp.2 -
p.3 - Play the video from this slide. p.3

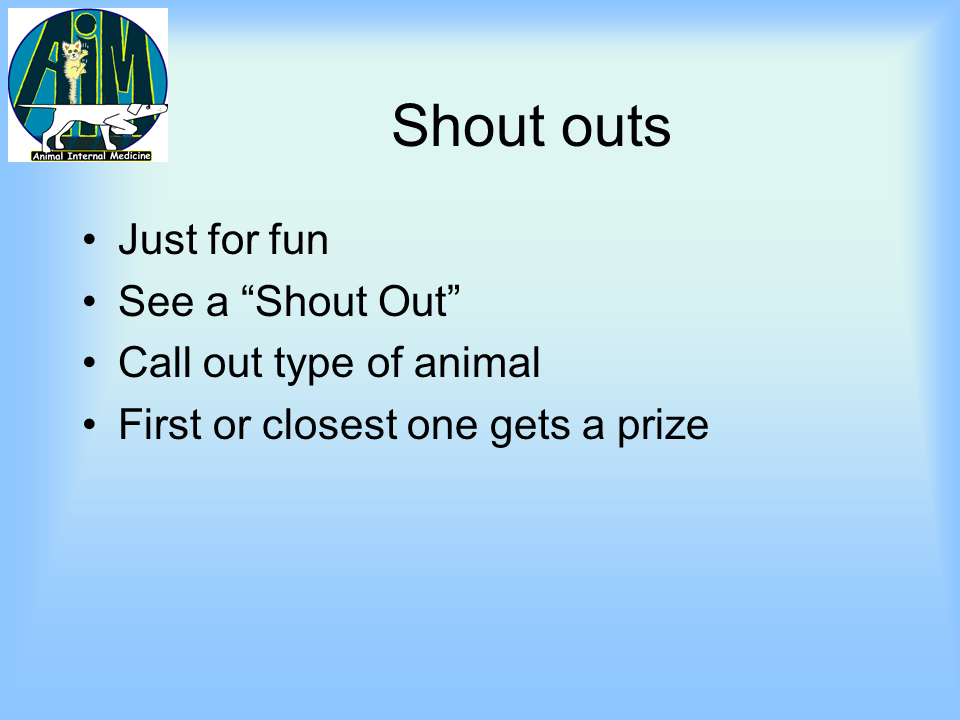

Shout outs
-Just for fun
-See a “Shout Out”
-Call out type of animal
-First or closest one gets a prizep.3 -
p.4 - Play the video from this slide. p.4

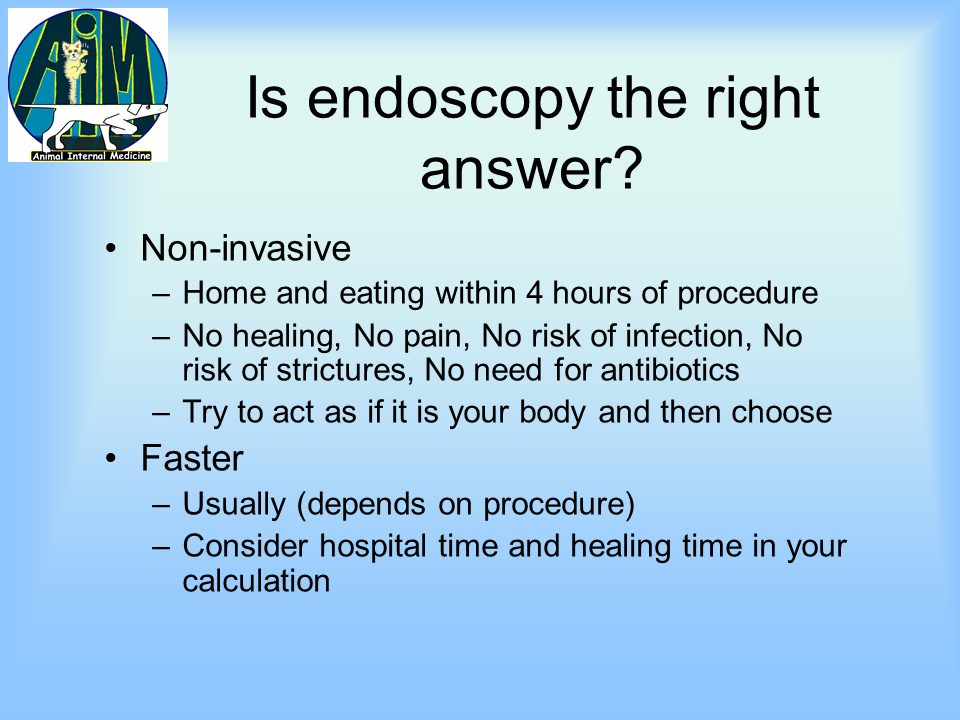

Is endoscopy the right answer?
-Non-invasive
– Home and eating within 4 hours of procedure
– No healing, No pain, No risk of infection, No risk of strictures, No need for antibiotics
– Try to act as if it is your body and then choose
-Faster
– Usually (depends on procedure)
– Consider hospital time and healing time in your calculationp.4 -
p.5 - Play the video from this slide. p.5

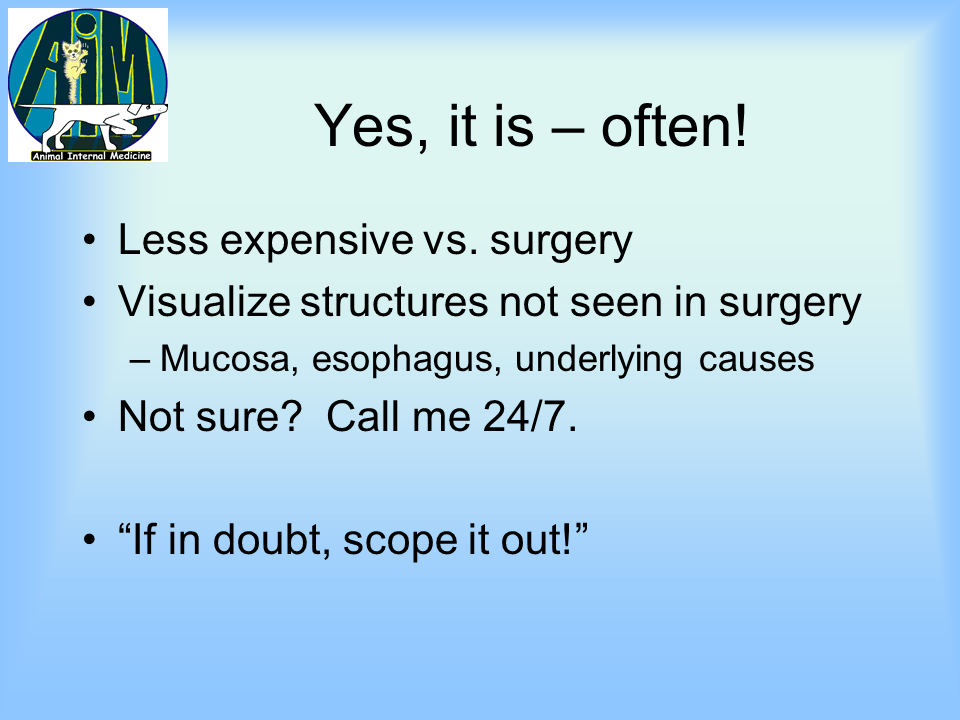

Yes, it is – often!
– Less expensive vs. surgery
– Visualize structures not seen in surgery
– Mucosa, esophagus, underlying causes
– Not sure? Call me 24/7.
– “If in doubt, scope it out!”p.5 -
p.6 - Play the video from this slide. p.6
Foreign bodies may represent pica
p.6 -
p.7 - Play the video from this slide. p.7
Post-surgical stricture
p.7 -
p.8 - Play the video from this slide. p.8
Scope for the jackpot
p.8 -
p.9 - Play the video from this slide. p.9

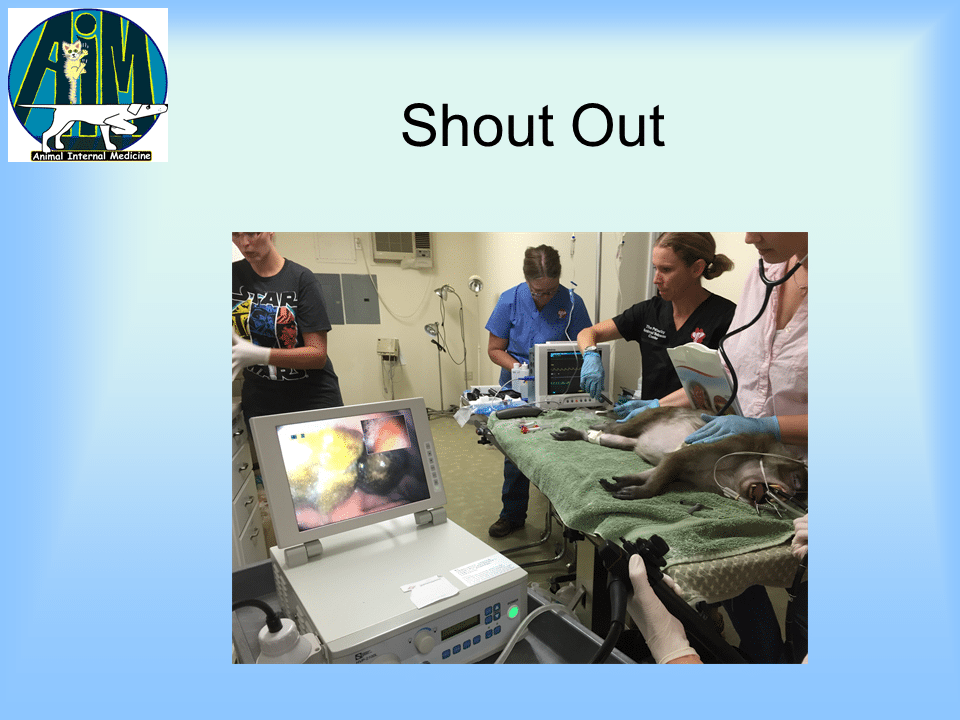

Shout out
p.9 -
p.10 - Play the video from this slide. p.10

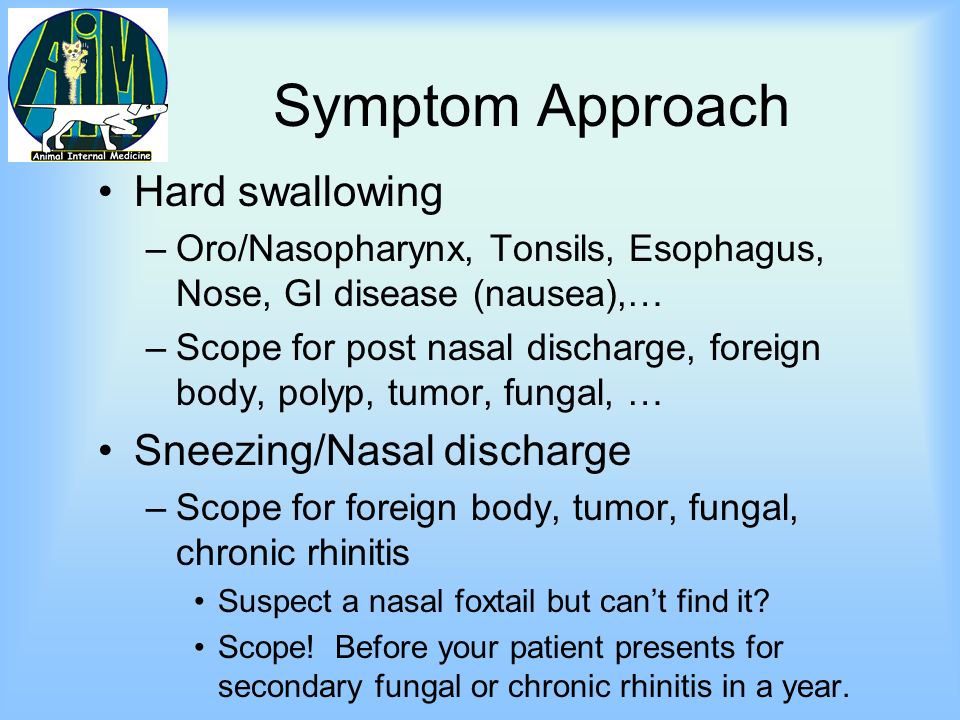

Symptom Approach
–Hard swallowing
– Oro/Nasopharynx, Tonsils, Esophagus,
Nose, GI disease (nausea),...
– Scope for post nasal discharge, foreign
body, polyp, tumor, fungal, ...
– Sneezing/Nasal discharge
– Scope for foreign body, tumor, fungal,
chronic rhinitis
– Suspect a nasal foxtail but can’t find it?
– Scope! Before your patient presents for secondary fungal or chronic rhinitis in a year.p.10 -
p.11 - Play the video from this slide. p.11
Visualize caudal nares
p.11 -
p.12 - Play the video from this slide. p.12

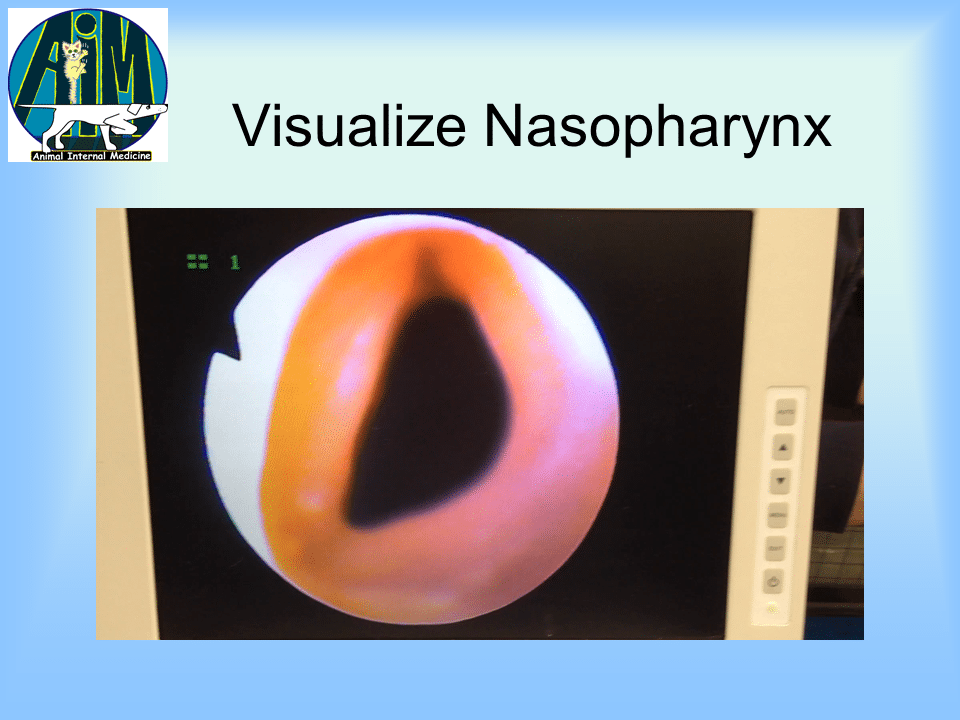

Visualize Nasopharynx
p.12 -
p.13 - Play the video from this slide. p.13
After ballooning
p.13 -
p.14 - Play the video from this slide. p.14
After search for hard swallowing
p.14 -
p.15 - Play the video from this slide. p.15
Rhinoscopy Tamalpais Pet
p.15 -
p.16 - Play the video from this slide. p.16
With cats, what they usually do is they eat the grass and then they vomit up into the nasopharynx. Then we have to go over the soft palate over the back of the nose to pull out that grass or whatever foreign bodies they vomited up into nasopharynx.
p.16 -
p.17 - Play the video from this slide. p.17
Shout out
p.17 -
p.18 - Play the video from this slide. p.18

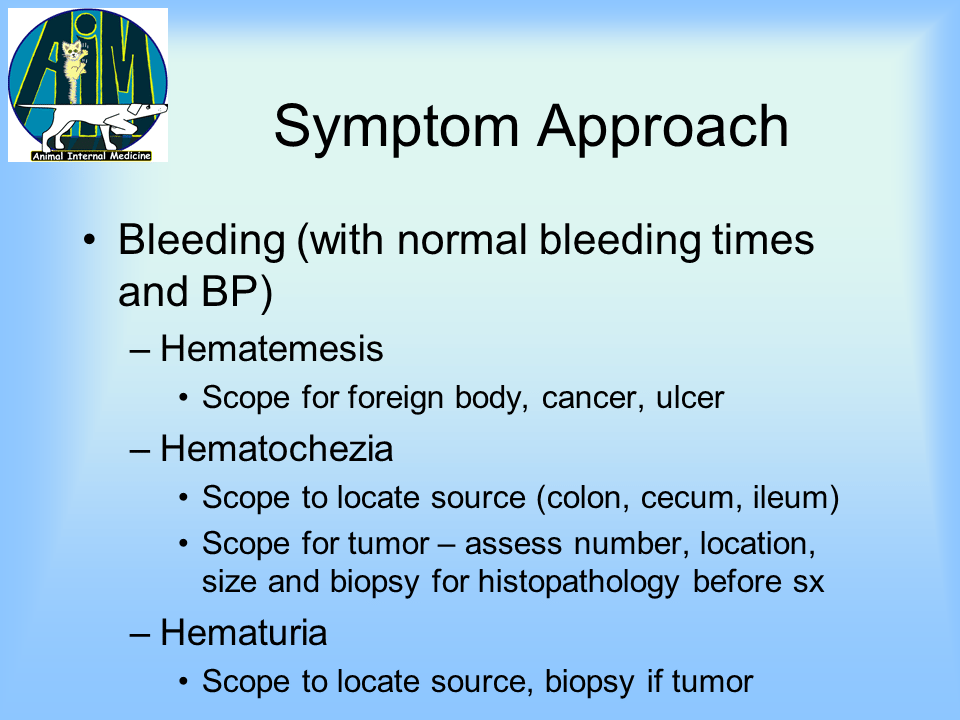

Symptom Approach
– Bleeding (with normal bleeding times and BP)
– Hematemesis
– Scope for foreign body, cancer, ulcer – Hematochezia
– Hematochezia
– Scope to locate source (colon, cecum, ileum)
– Scope for tumor – assess number, location, size and biopsy for histopathology before sx
– Hematuria
– Scope to locate source, biopsy if tumorp.18 -
p.19 - Play the video from this slide. p.19
Hematochezia
p.19 -
p.20 - Play the video from this slide. p.20
Shout out
p.20 -
p.21 - Play the video from this slide. p.21

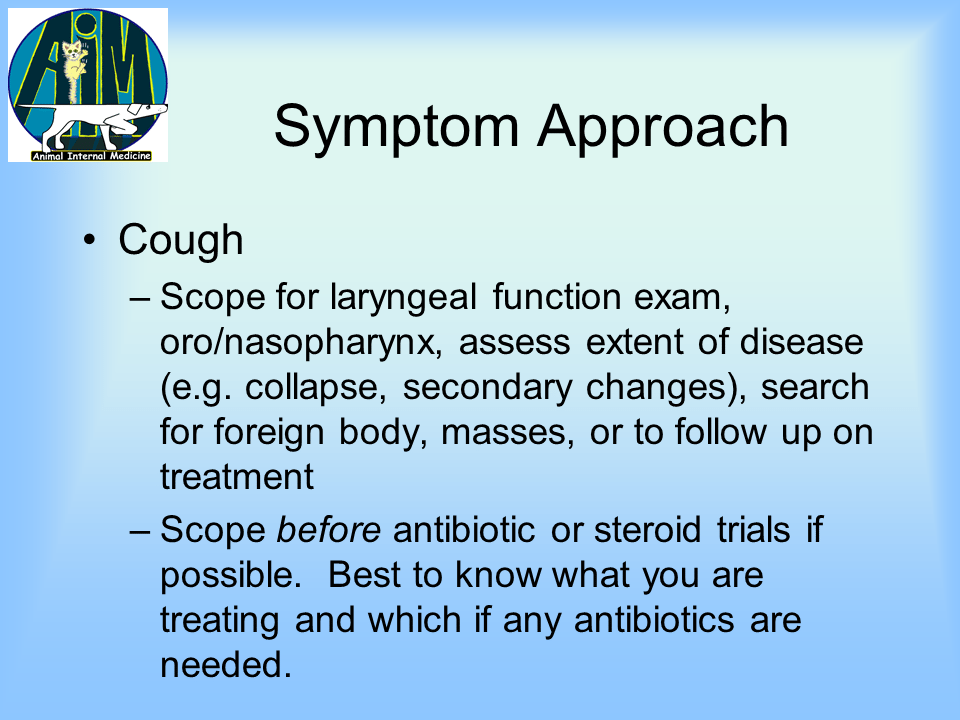

Symptom Approach
• Cough
– Scope for laryngeal function exam, oro/nasopharynx, assess extent of disease (e.g. collapse, secondary changes), search for foreign body, masses, or to follow up on treatment
– Scope before antibiotic or steroid trials if possible. Best to know what you are treating and which if any antibiotics are needed.p.21 -
p.22 - Play the video from this slide. p.22

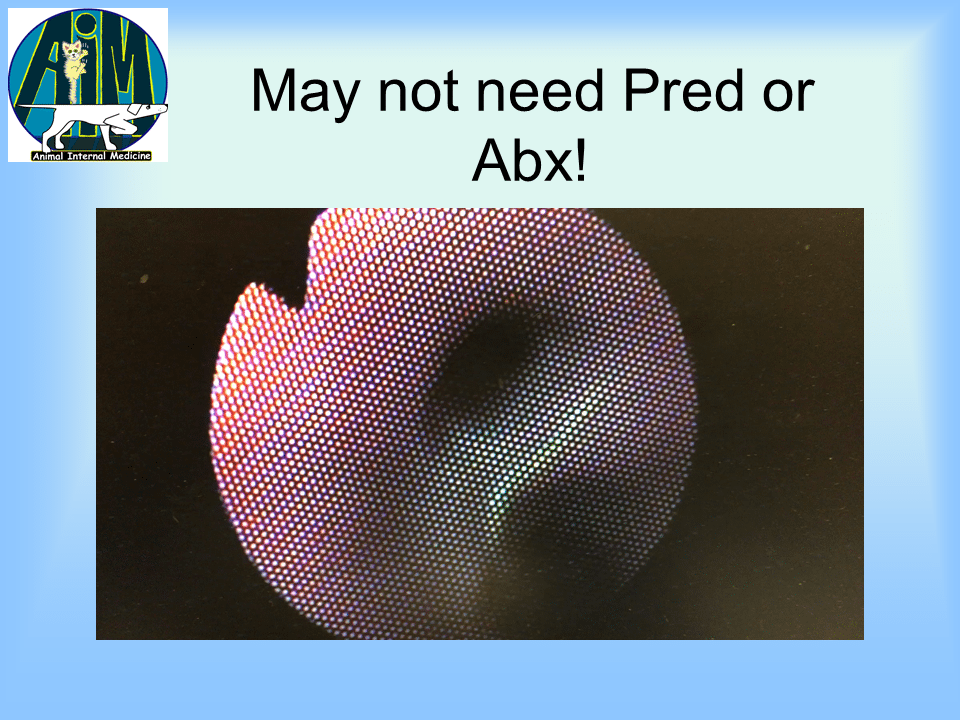

May not need Pred or Abx!
p.22 -
p.23 - Play the video from this slide. p.23
Post Nasal Discharge
p.23 -
p.24 - Play the video from this slide. p.24
Intermittent Cough
p.24 -
p.25 - Play the video from this slide. p.25
Localize
p.25 -
p.26 - Play the video from this slide. p.26
Bronchoscopy Broadway
Removing grass awn
Animal Internal Medicine
Bronchoscopy Broadway
End of grass awnp.26 -
p.27 - Play the video from this slide. p.27
Secondary changes
p.27 -
p.28 - Play the video from this slide. p.28

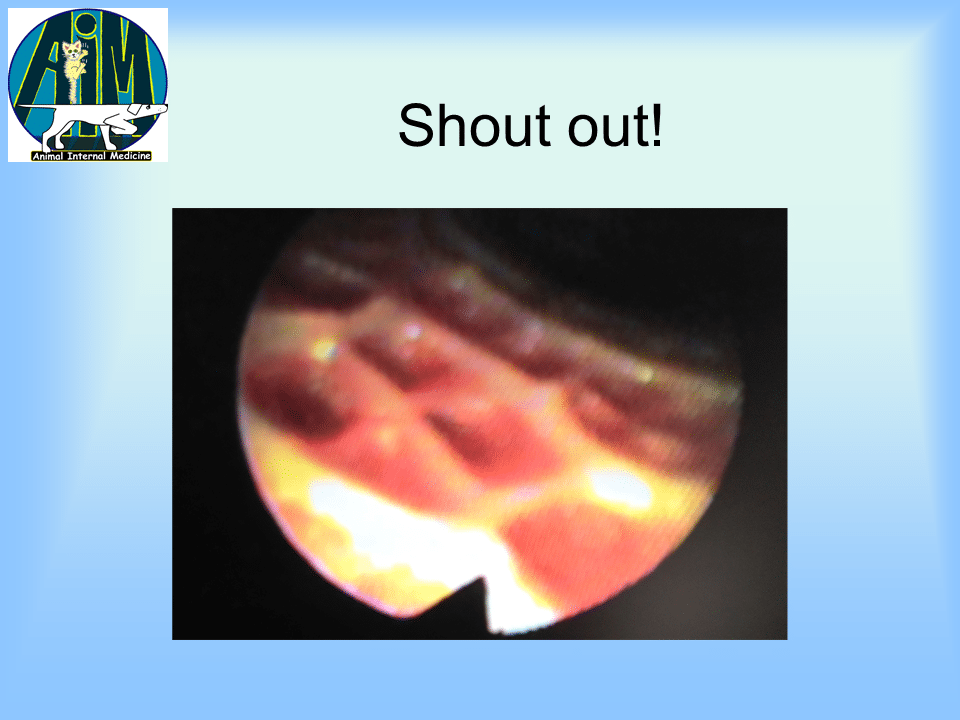

Shout out!
p.28 -
p.29 - Play the video from this slide. p.29

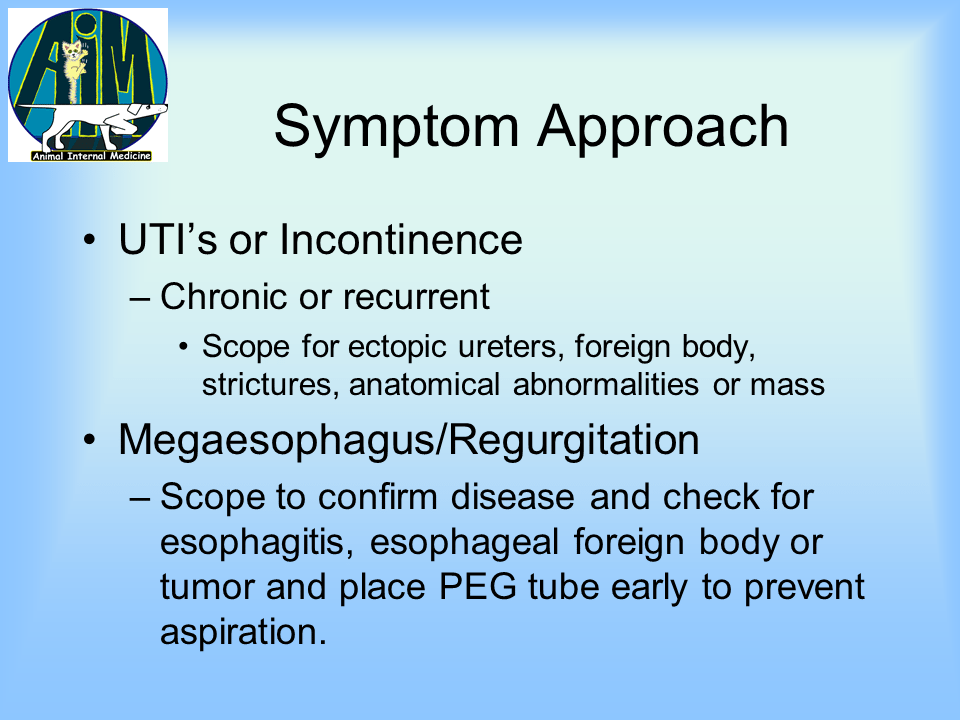

Symptom Approach
– UTI’s or Incontinence
– Chronic or recurrent
– Scope for ectopic ureters, foreign body, strictures, anatomical abnormalities or mass
– Megaesophagus/Regurgitation
– Scope to confirm disease and check for esophagitis, esophageal foreign body or tumor and place PEG tube early to prevent aspirationp.29 -
p.30 - Play the video from this slide. p.30
Vaginal Vault
p.30 -
p.31 - Play the video from this slide. p.31
Shout out!
p.31 -
p.32 - Play the video from this slide. p.32

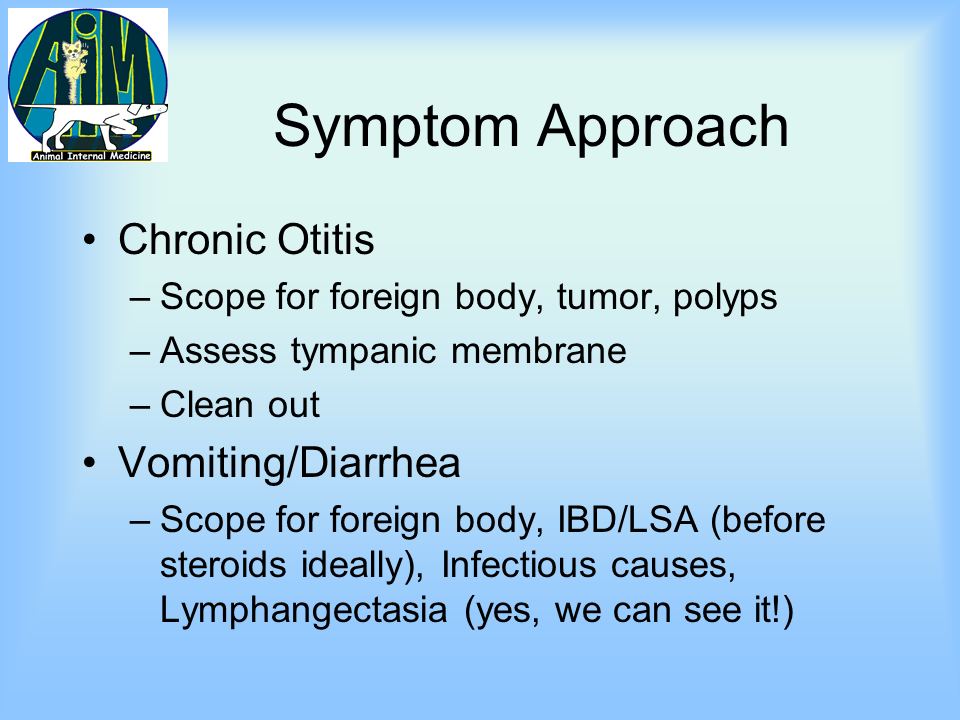

Symptom Approach
– Chronic Otitis
– Scope for foreign body, tumor, polyps
– Assess tympanic membrane
– Clean out
– Vomiting/Diarrhea
– Scope for foreign body, IBD/LSA (before steroids ideally), Infectious causes, Lymphangectasia (yes, we can see it!)p.32 -
p.33 - Play the video from this slide. p.33
Animal Internal Medicine
Endoscopy of an Ear
Bulging eardrum
purulent discharge and blood after biopsying and moving eardrum
massp.33 -
p.34 - Play the video from this slide. p.34
Lymphangectasia
p.34 -
p.35 - Play the video from this slide. p.35
Rule out infectious
p.35 -
p.36 - Play the video from this slide. p.36

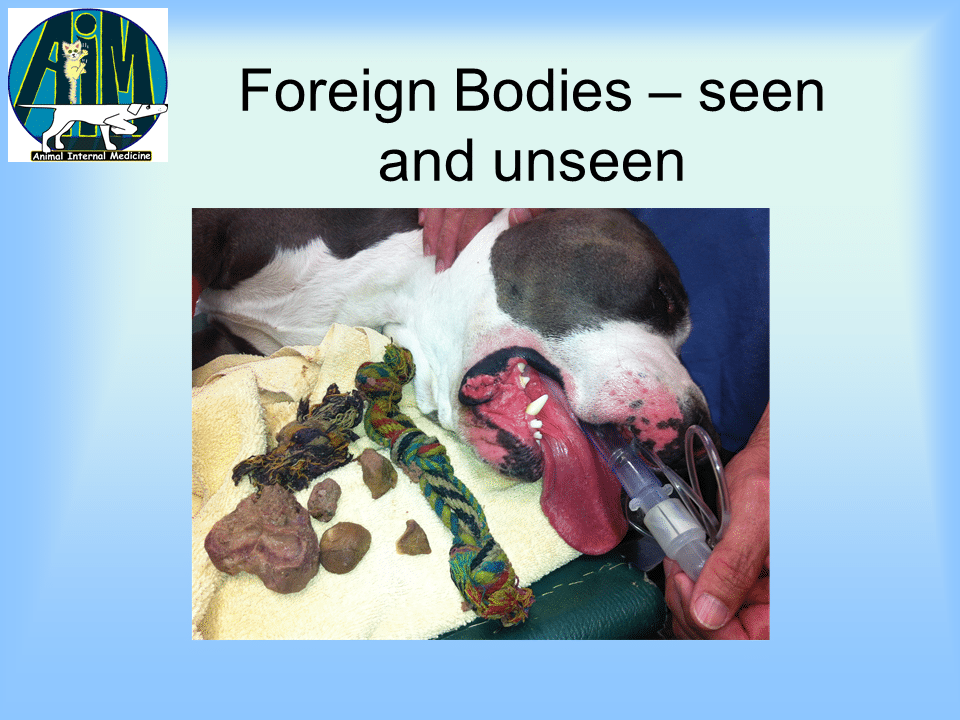

Foreign Bodies – seen and unseen
p.36 -
p.37 - Play the video from this slide. p.37
8 months later
- This cat was treated for “IBD” for 8 months.p.37 -
p.38 - Play the video from this slide. p.38
Star from duodenum
p.38 -
p.39 - Play the video from this slide. p.39

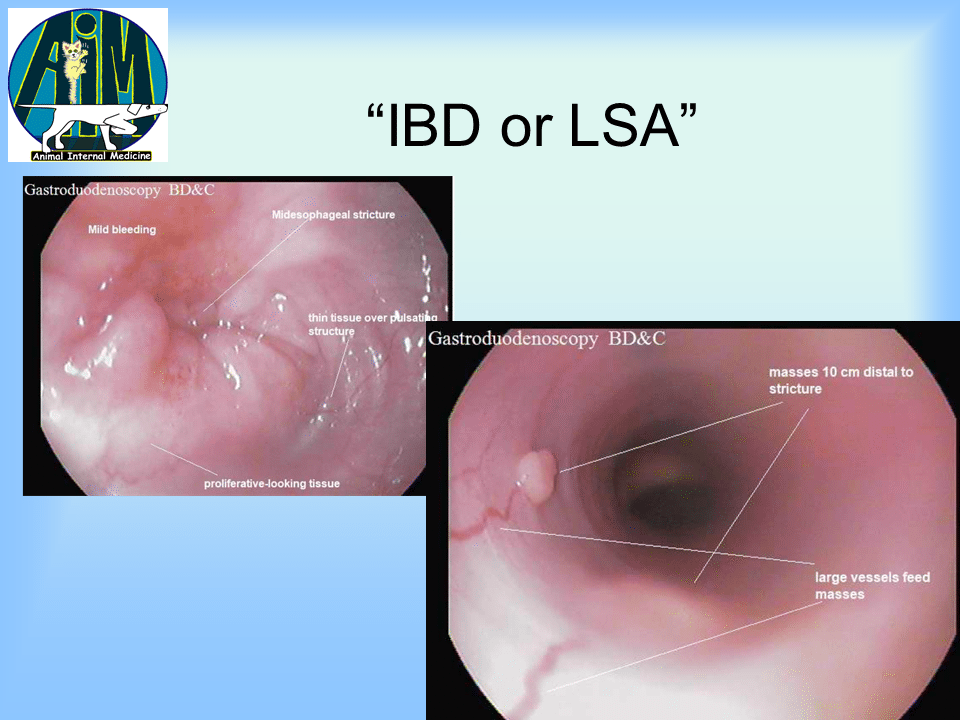

“IBD or LSA”
p.39 -
p.40 - Play the video from this slide. p.40

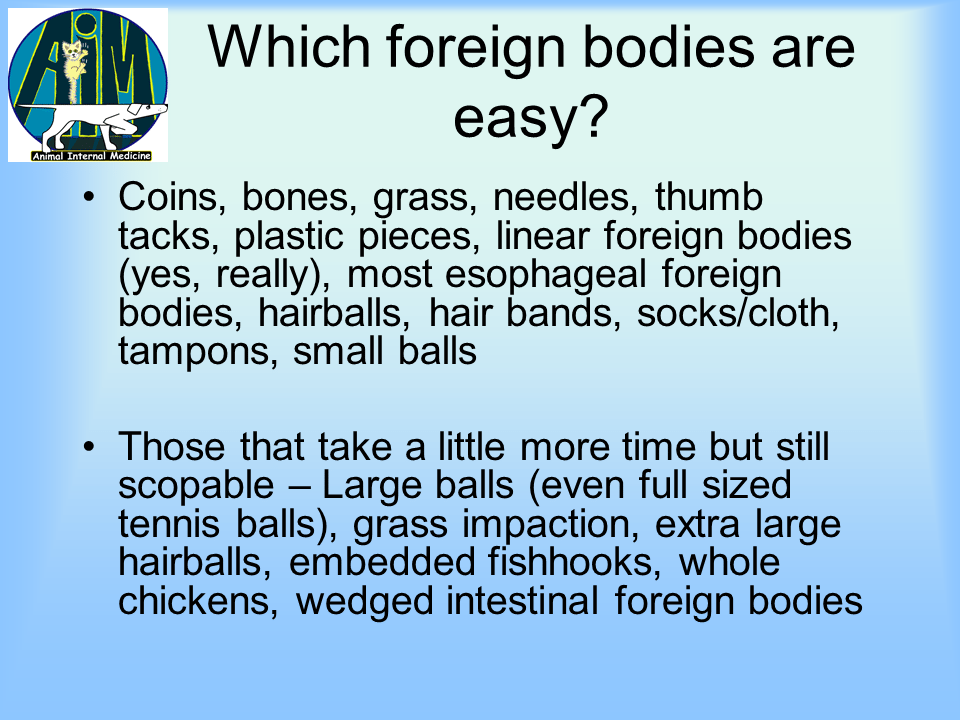

Which foreign bodies are easy?
- Coins, bones, grass, needles, thumb tacks, plastic pieces, linear foreign bodies (yes, really), most esophageal foreign bodies, hairballs, hair bands, socks/cloth, tampons, small balls
- Those that take a little more time but still scopable – Large balls (even full sized tennis balls), grass impaction, extra large hairballs, embedded fishhooks, whole chickens, wedged intestinal foreign bodiesp.40 -
p.41 - Play the video from this slide. p.41
Esophageal foreign bodies – child’s play?
p.41 -
p.42 - Play the video from this slide. p.42
Esophageal Foreign Body
p.42 -
p.43 - Play the video from this slide. p.43
Removing Esophageal FB
p.43 -
p.44 - Play the video from this slide. p.44
FB out!
p.44 -
p.45 - Play the video from this slide. p.45
Esophageal foreign bodies can be subtle
p.45 -
p.46 - Play the video from this slide. p.46
But really, they can be
- This dog came in every day for 10 days with symptoms of non-localizable painp.46 -
p.47 - Play the video from this slide. p.47
“It all started with a treat.”
p.47 -
p.48 - Play the video from this slide. p.48
Cloth – easy to grab
p.48 -
p.49 - Play the video from this slide. p.49
Even blankets
p.49 -
p.50 - Play the video from this slide. p.50
Coins
p.50 -
p.51 - Play the video from this slide. p.51
Strings
p.51 -
p.52 - Play the video from this slide. p.52

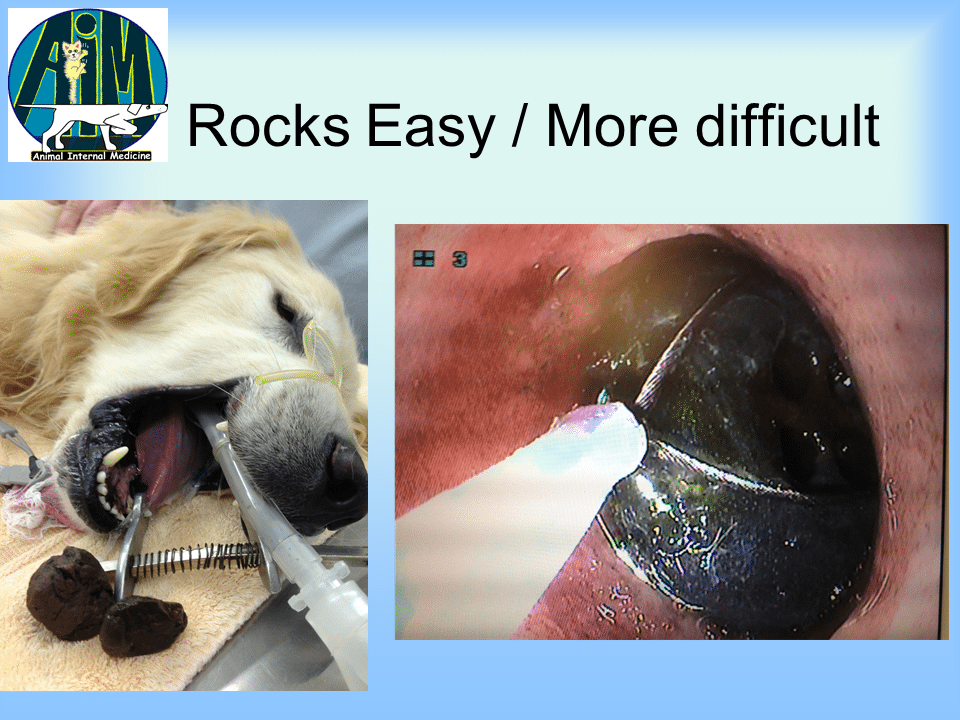

Rocks Easy / More difficult
p.52 -
p.53 - Play the video from this slide. p.53
Needles, Tacks, Fishhooks
p.53 -
p.54 - Play the video from this slide. p.54
Getting Creative
p.54 -
p.55 - Play the video from this slide. p.55
Baby Bottle Liner Technique
p.55 -
p.56 - Play the video from this slide. p.56
Shout Out
p.56 -
p.57 - Play the video from this slide. p.57

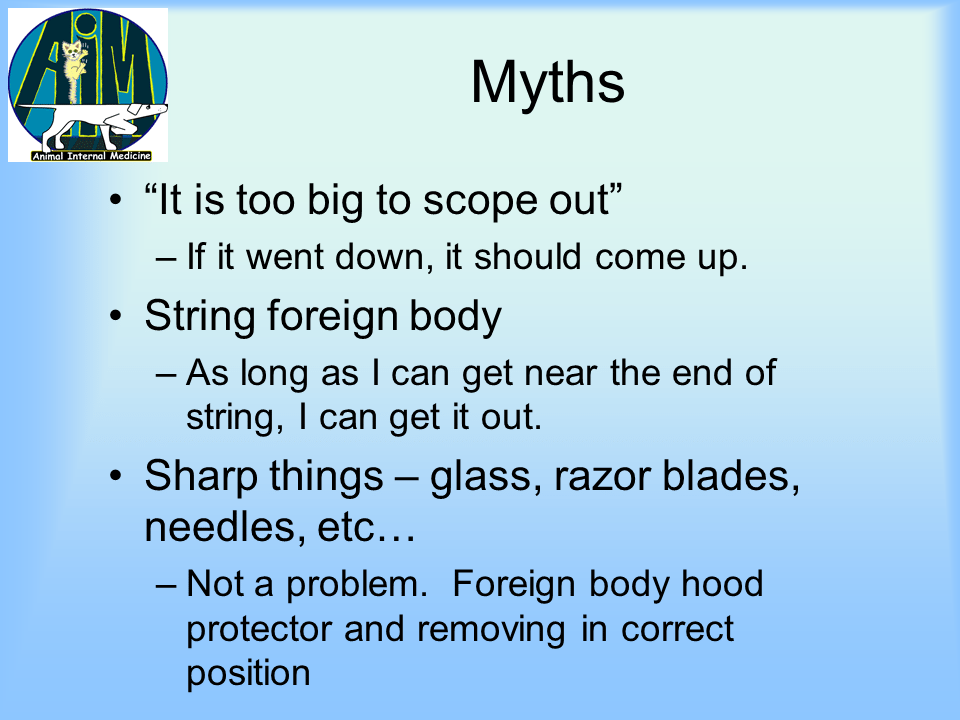

Myths
– “It is too big to scope out”
– If it went down, it should come up.
– String foreign body
– As long as I can get near the end of
string, I can get it out.
– Sharp things – glass, razor blades, needles, etc...
– Not a problem. Foreign body hood protector and removing in correct positionp.57 -
p.58 - Play the video from this slide. p.58

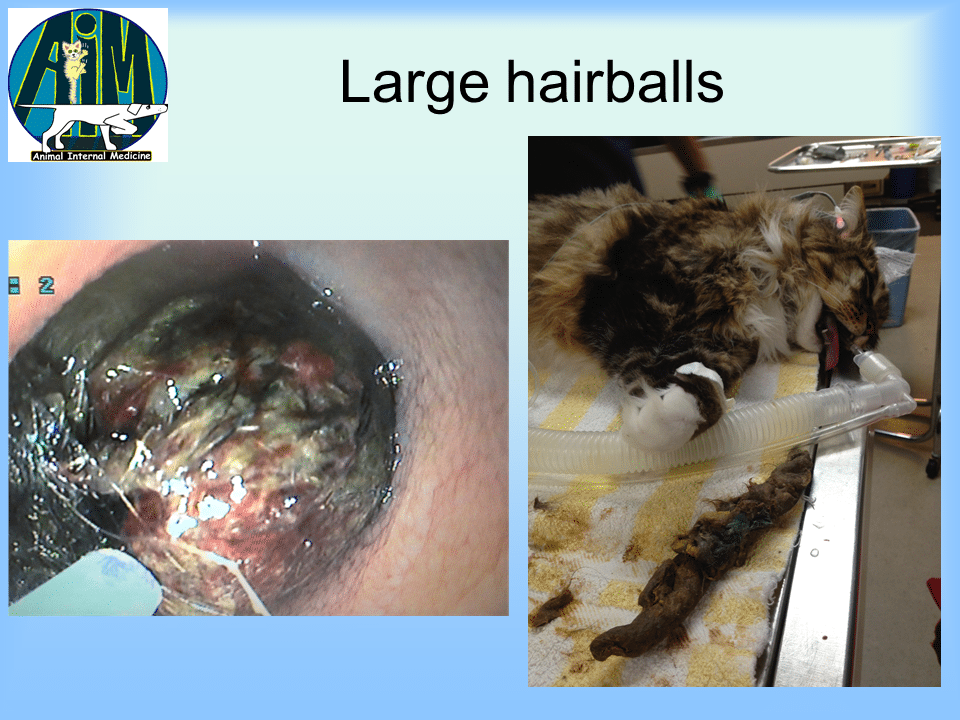

Large hairballs
p.58 -
p.59 - Play the video from this slide. p.59
Rubber ducky’s become ducky statues
p.59 -
p.60 - Play the video from this slide. p.60
Whole ball
p.60 -
p.61 - Play the video from this slide. p.61
Even the jumbo tennis balls
p.61 -
p.62 - Play the video from this slide. p.62
Linear foreign bodies
p.62 -
p.63 - Play the video from this slide. p.63
Sharp Foreign Bodies
p.63 -
p.64 - Play the video from this slide. p.64
Piece of glass
p.64 -
p.65 - Play the video from this slide. p.65
Fishhooks
p.65 -
p.66 - Play the video from this slide. p.66
Too big?
p.66 -
p.67 - Play the video from this slide. p.67
A chance to cure without harm
p.67 -
p.68 - Play the video from this slide. p.68
Animal Internal Medicine
Owner: McAbee. William Animal: Scout Date: 30-Nov-2017 11:39:07 RAbdomen Lateral
North Peninsula Veterinaryp.68 -
p.69 - Play the video from this slide. p.69
Too Small
p.69 -
p.70 - Play the video from this slide. p.70
Shout Out
p.70 -
p.71 - Play the video from this slide. p.71

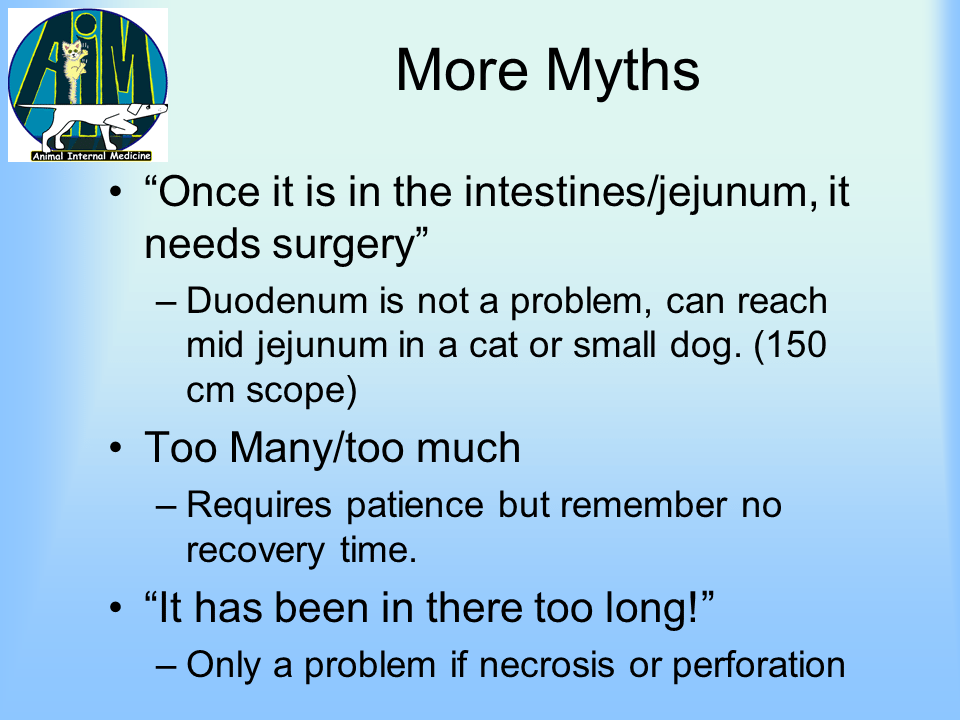

– “Once it is in the intestines/jejunum, it needs surgery”
– Duodenum is not a problem, can reach mid jejunum in a cat or small dog. (150 cm scope)
– Too Many/too much
– Requires patience but remember no
recovery time.
– “It has been in there too long!”
– Only a problem if necrosis or perforationp.71 -
p.72 - Play the video from this slide. p.72
Thanks for not cutting me!
p.72 -
p.73 - Play the video from this slide. p.73

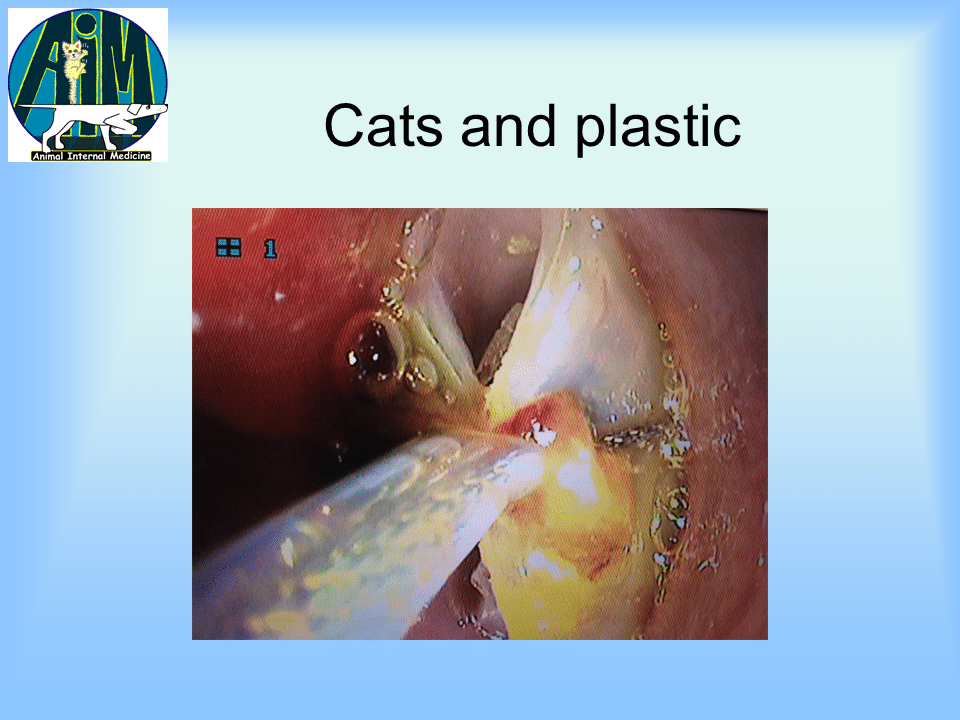

Cats and plastic
p.73 -
p.74 - Play the video from this slide. p.74
More plastic foreign bodies
p.74 -
p.75 - Play the video from this slide. p.75
Not too many – takes patience though
p.75 -
p.76 - Play the video from this slide. p.76
Hair bands are common
p.76 -
p.77 - Play the video from this slide. p.77
Dogs too
p.77 -
p.78 - Play the video from this slide. p.78

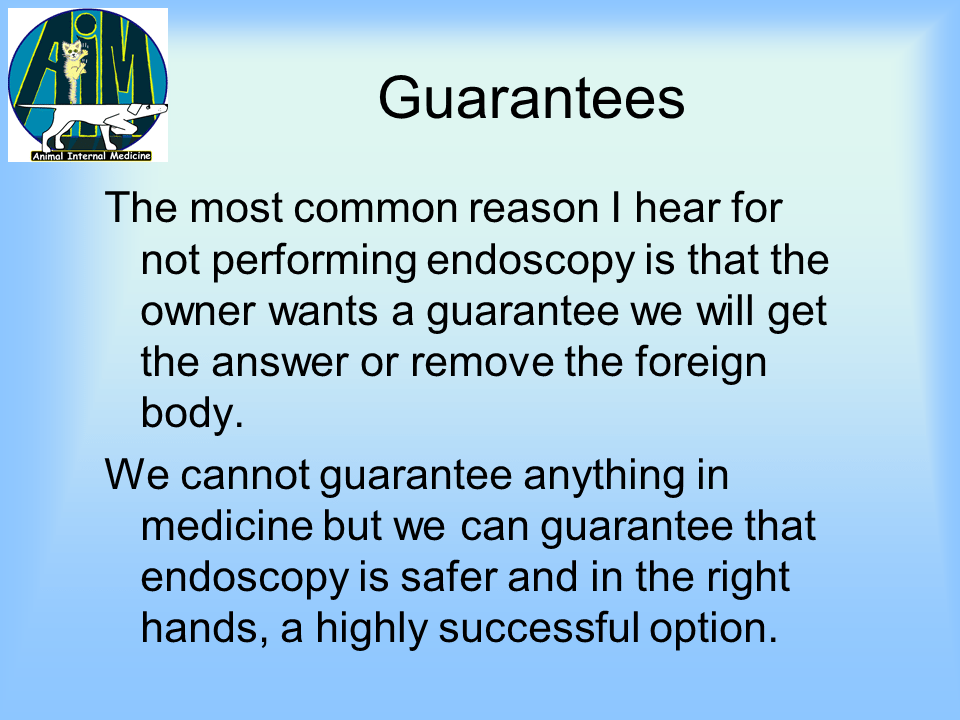

Guarantees
The most common reason I hear for not performing endoscopy is that the owner wants a guarantee we will get the answer or remove the foreign body.We cannot guarantee anything in medicine but we can guarantee that endoscopy is safer and in the right hands, a highly successful option.
p.78 -
p.79 - Play the video from this slide. p.79
Shout out
p.79 -
p.80 - Play the video from this slide. p.80

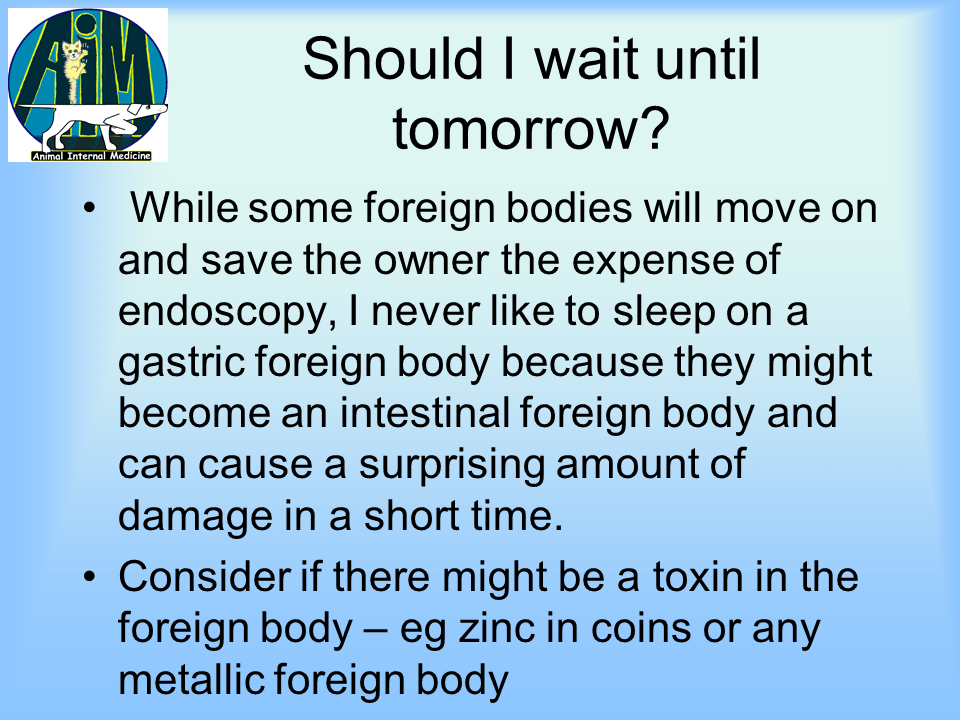

Should I wait until tomorrow?
- While some foreign bodies will move on and save the owner the expense of endoscopy, I never like to sleep on a gastric foreign body because they might become an intestinal foreign body and can cause a surprising amount of damage in a short time.
- Consider if there might be a toxin in the foreign body – eg zinc in coins or any metallic foreign bodyp.80 -
p.81 - Play the video from this slide. p.81

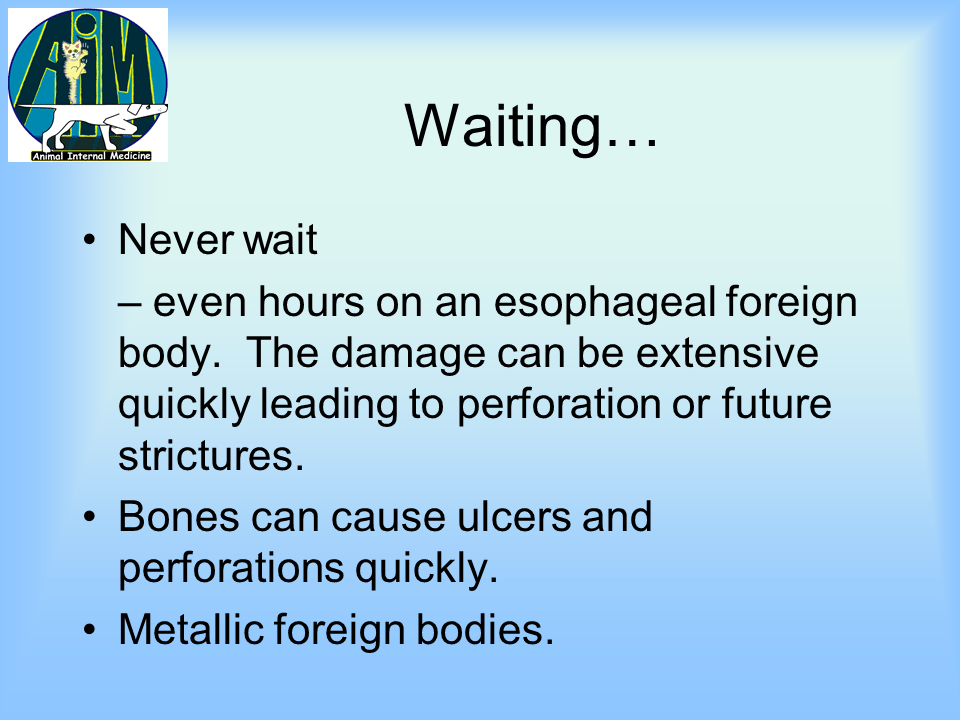

Waiting...
- Never wait – even hours on an esophageal foreign body. The damage can be extensive quickly leading to perforation or future strictures.
- Bones can cause ulcers and perforations quickly.
- Metallic foreign bodies.p.81 -
p.82 - Play the video from this slide. p.82
Esophageal FB
p.82 -
p.83 - Play the video from this slide. p.83
Ouch!
p.83 -
p.84 - Play the video from this slide. p.84
Double ouch!!
p.84 -
p.85 - Play the video from this slide. p.85
Bones can be like knives
p.85 -
p.86 - Play the video from this slide. p.86
Near perforation from bone
p.86 -
p.87 - Play the video from this slide. p.87

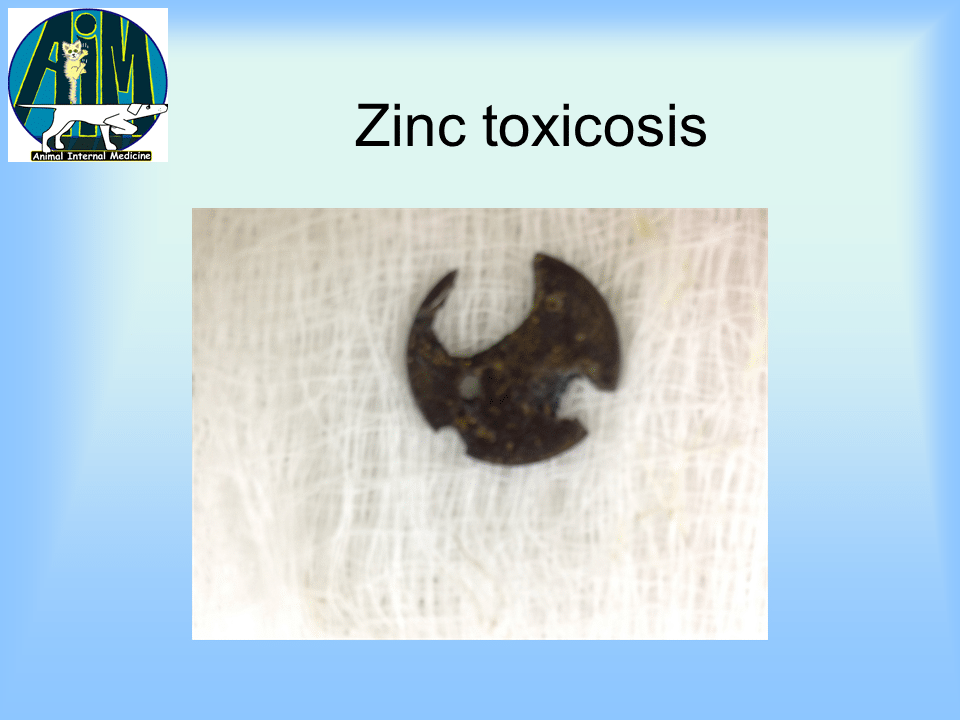

Zinc toxicosis
p.87 -
p.88 - Play the video from this slide. p.88
Shout out
p.88 -
p.89 - Play the video from this slide. p.89

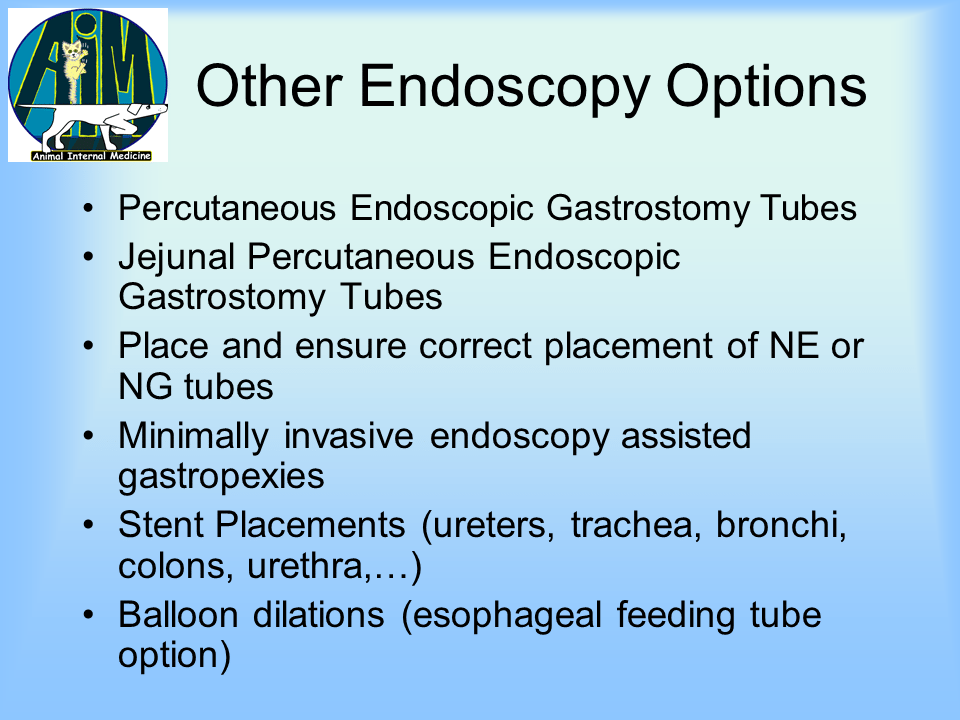

Other Endoscopy Options
- Percutaneous Endoscopic Gastrostomy Tubes
- Jejunal Percutaneous Endoscopic Gastrostomy Tubes
- Place and ensure correct placement of NE or NG tubes
- Minimally invasive endoscopy assisted gastropexies
- Stent Placements (ureters, trachea, bronchi, colons, urethra,...)
- Balloon dilations (esophageal feeding tube option)p.89 -
p.90 - Play the video from this slide. p.90
PEG tube in cat
p.90 -
p.91 - Play the video from this slide. p.91
Shout out
p.91 -
p.92 - Play the video from this slide. p.92
Esophageal stricture
p.92 -
p.93 - Play the video from this slide. p.93
Balloon Dilation
p.93 -
p.94 - Play the video from this slide. p.94
Lesion distal to stricture
p.94 -
p.95 - Play the video from this slide. p.95
Esophagus after 4th dilation
p.95 -
p.96 - Play the video from this slide. p.96

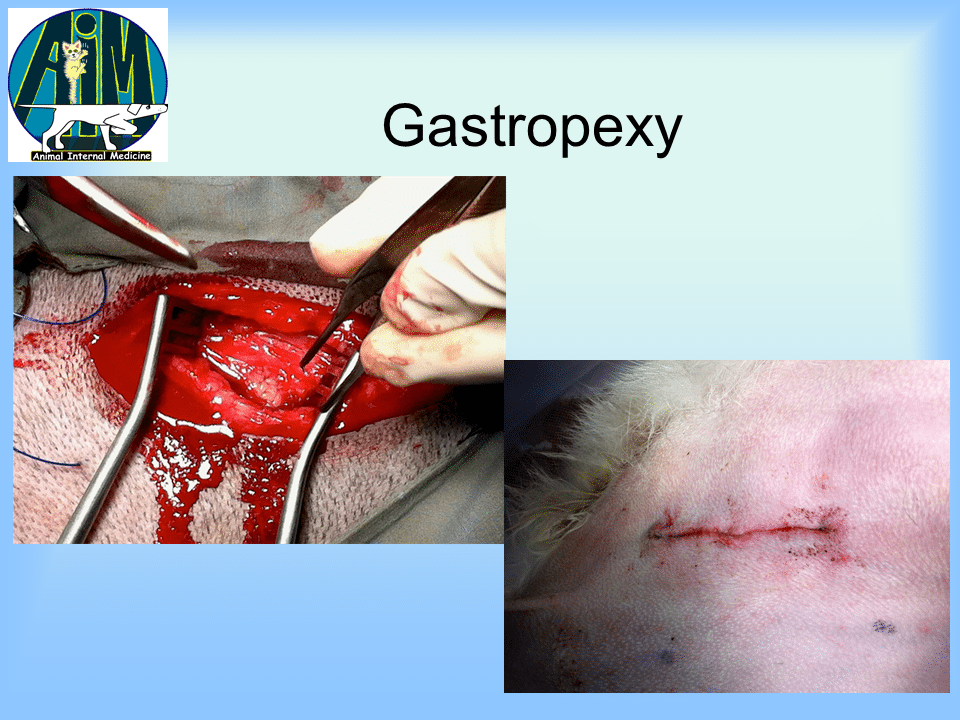

Gastropexy
p.96 -
p.97 - Play the video from this slide. p.97

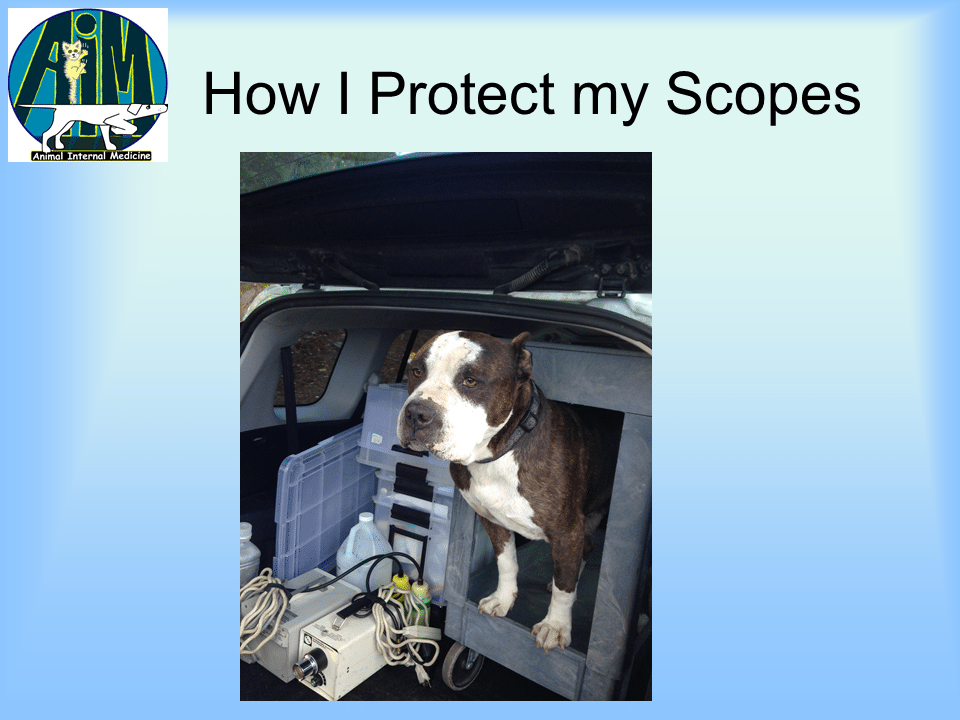

How I Protect my Scopes
p.97 -
p.98 - Play the video from this slide. p.98
Shout out
p.98 -
p.99 - Play the video from this slide. p.99
Ella the Siamang
p.99 -
p.100 - Play the video from this slide. p.100
Thankssss for lisssening
p.100 -
p.101 - Play the video from this slide. p.101
Amy Allen, DVM,
Diplomate ACVIM
415-272-8982p.101
-
00:46:20
Introduction to nutrition: Basics and essential nutrients
Sarah Wilson, BSc.H, DVMVetScope -
00:56:31
Count On This: Dentistry Basics
Sandy Gregory, M.Ed, RVT, VTS (Physical Rehab), CCRAVetScope -
00:55:37
Pain: See it. Treat it.
Matt Brunke, DVM, CCRP, CVPP, CVAVetScope -
00:50:19
Basics of Neurology: Spinal Cord and Peripheral Nerve Diseases
Matt Brunke, DVM, CCRP, CVPP, CVAVetScope
